IBC Liquid Liner

Liquid Liners, Filling & Discharge Accessories

Arena liquid liners require only one person to set up, fill, and discharge. They are recyclable, lower labor costs, and deliver best-in-class product recovery, even for highly viscous liquids. Our liners use FDA-approved materials and Food Safety Management System certified manufacturing processes (FSSC2200) that meet Kosher and IMS standards.

Liquid liners are available in various styles, which can be customized to clients’ specific packaging, filling, and discharge operations. Also, barrier films that protect against moisture, oxygen, environmental contaminants, and/or UV light can be added.

Our Air Evac® technology ensures maximum product recovery with a patented automatic air delivery system that replaces product volume with regulated air. The air and product chambers are separate, ensuring that air never comes in direct contact with the stored product.

Air Evac® Vertex®

Newest liquid liner addition to the Air Evac line up
Tested to 500,000 cPs
Available in hands-free top-fill, bottom discharge or bottom fill, bottom discharge
3-ply LLDPE for maximum strength
Liner available in various configurations

Air Evac® Blowfish®

Hands-free top-fill, bottom discharge
Delivers low residuals at viscosities over 400,000 cPs
3-ply LLDPE for maximum strength
Liner available in various configurations

Air Evac® Starfish®

Hands-free top-fill, top-discharge
Proven success at viscosities over 400,000 cPs
3-ply LLDPE for maximum strength

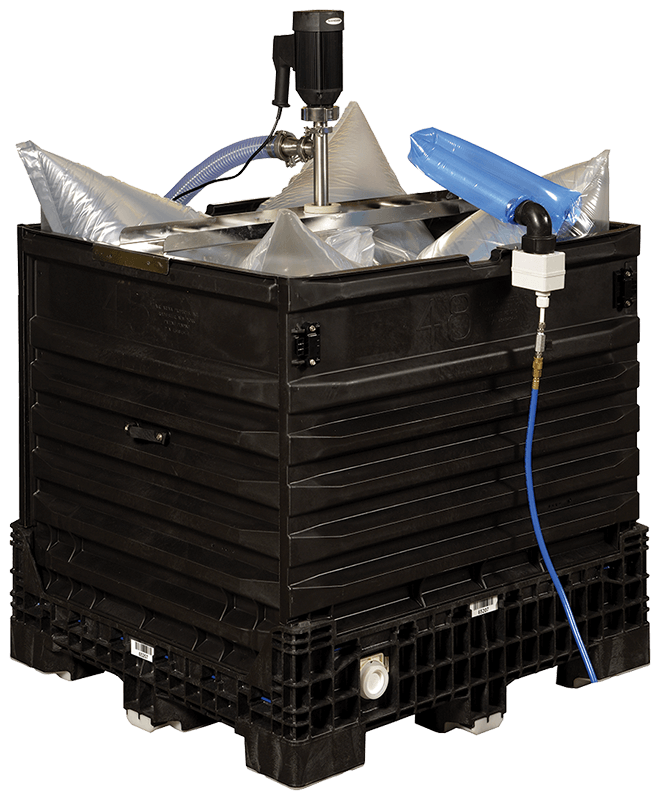

Customized pumps, dip tubes, and lifts available

Pillow Liners

Hands-free top-fill, bottom-discharge
Cassette design ensures quality fill
Available in 2- or 3-ply
Can be used in conjunction with the Arena bag wringer

Air Evac® Liner Tech Specifications & Operating Capabilities

Volume Capacity: 330 gallons/1250 liters/44.11 cubic feet (with Arena 330 shipper)
Tare Weight: 6.5 lbs (2.9kg)
Packaging: 5 per box, 90 per pallet
Air Requirements: Shop air @ 80-100 psi input
Fitments: 2″ or 3″ top, 2″ bottom
Certifications: Certified for food contact and Kosher standards
Recyclable
